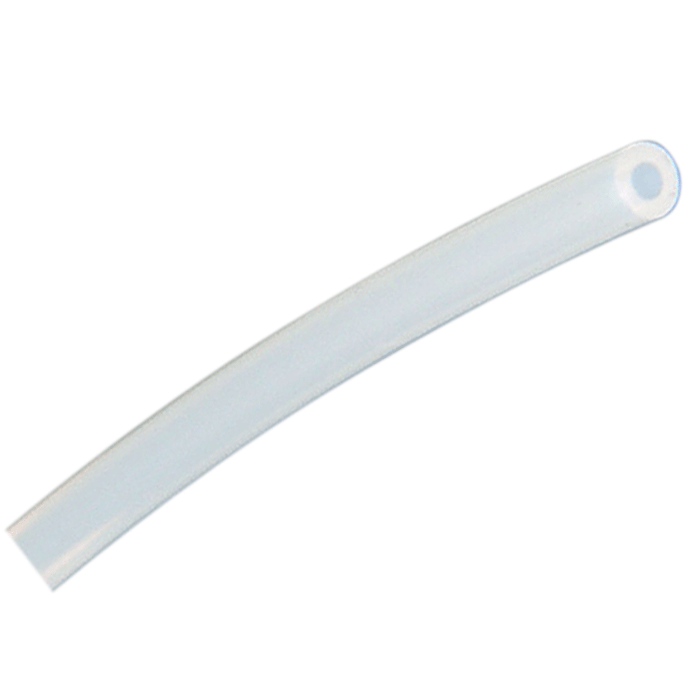

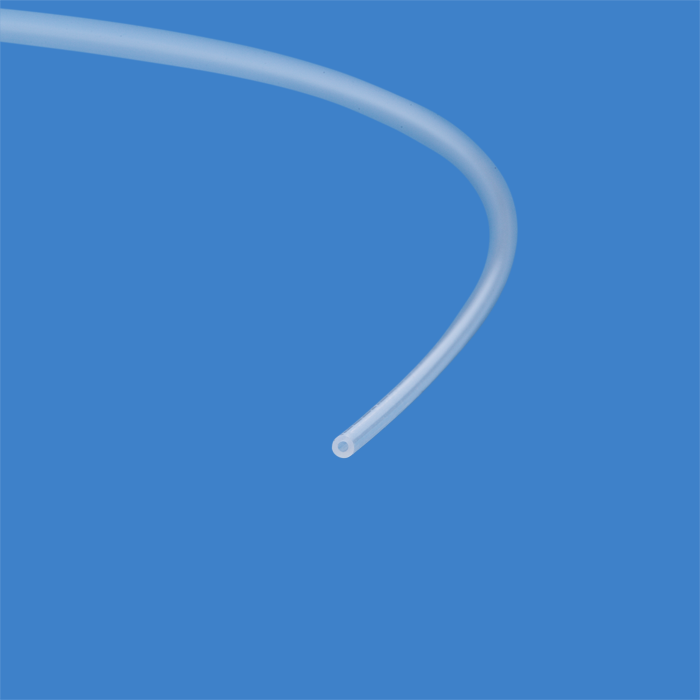

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-30-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering a large internal diameter for high‑flow solvent routing and reduced backpressure, along with extended length for flexible system configurations.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring clean, inert fluid paths and compatibility with sensitive analytical workflows.
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series provides maximum flow capacity and minimal flow restriction
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑volume solvent transfer over extended distances
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except trace particles from manufacturing)
Chemically inert and non‑reactive
✅ Suitable for LC‑MS and trace‑level analytical applications
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Performs reliably in aggressive chemical and elevated‑temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing where gas impermeability is required
Flexible & Durable Design
Flexible for long‑distance routing and system integration
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient system setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
High‑flow HPLC mobile phase delivery (pre‑pump)
Bulk solvent transfer and routing
Extended solvent waste lines
Low‑pressure laboratory fluid handling
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Consider permeability effects when using degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure, leak‑free performance
